A miter gauge for table saw work is one of those accessories that can look almost too simple to matter.It’s a simple piece of hardware; a guide bar, a pivoting head and a fence. The precision of that combination, however, determines whether that cross-cut is square, that angled join is precisely fitting, or that several parts will be identical.
The miter gauge holds a unique niche within table saw use. Most would define a table saw use as ripping boards against a fence. But with a miter gauge guiding the workpiece, the table saw can effectively make precision cuts to the width of a board. This requires not simply setting the miter gauge to 90 degrees, but a tight-fitting gauge, properly aligned guide slot, an aligned blade, and a secure workpiece.
This places the miter gauge less as a piece of accessory hardware, and more as a sub-component system. A thorough understanding of the interplay between the elements that comprise a miter gauge can improve the quality of woodworking operations as well as enhance safety.

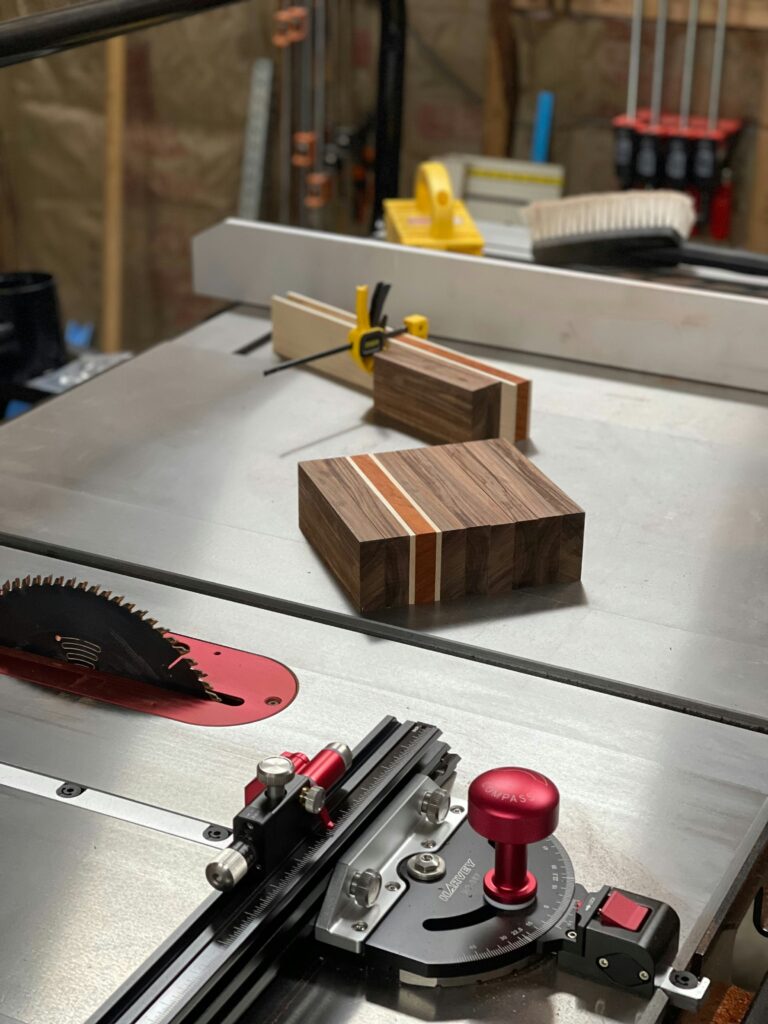

What a Miter Gauge Actually Does on a Table Saw
What is a miter gauge? It is a slide that goes down one of the table saws’ miter slots. The head on this slider normally swings to an arbitrary angle, and the miter gauge guides a work piece to and through the blade, enabling to take cross cuts and angled cuts across the table saw.
At 0 degrees, the gauge is usually set perpendicular to the blade, producing square cross cuts across the work piece. The miter gauge can be swung through the slot, creating angled cuts. This is the best for doing miters and other kinds of angle joints.
Operation: You rest your work piece up against the fence on the miter gauge, put the gauge in the miter slot, then slide it and the work piece over and through the blade. Table saw makers routinely indicate the miter gauge as appropriate when cutting your cross cuts and angled cross cuts.
The key here is forcing versus guiding. The miter gauge should be controlling the work piece, not have slop for the user to force work through.
Why the Miter Gauge Matters More Than Its Size Suggests
A cheap factory miter gauge would probably do the trick when your woodworking consists of occasional crosscuts. However, the limitations are clear when the woodworking involves repeatability.
If you are making a small cabinet requiring eight pieces of wood with identical 45-degree angles on both ends. If your miter gauge is 1-degree off, all eight pieces will be 1-degree off. What appears to be a minor mistake on a single cut, looks clearly evident when the pieces are assembled into a cabinet.
Another factor is loose play in the miter slot.
The guide bar should move freely in the miter slot without any sideways wobbling. If the miter gauge is too loose it can slide side to side when the workpiece is pushed into the blade. Too tight and it becomes a struggle to make cuts at different angles. WOOD Magazine suggests setting up the fit so there is just enough clearance for the bar to glide smoothly, but no side to side play.
This is why a knowledgeable woodworker often takes the time to properly set up their miter gauge prior to making any precision joinery.
The Three-Part Accuracy Chain
A useful way to think about a table-saw miter gauge is as part of an accuracy chain:
miter slot → gauge → workpiece → blade
If one link is inaccurate, the final cut can be inaccurate even if everything else is set correctly.
1. The miter slot
The gauge must move smoothly through the slot without excessive side movement.
2. The gauge
The gauge’s angle indicator and stops need to correspond to the actual blade position, rather than simply being trusted because the pointer says 90 or 45 degrees.
3. The workpiece
The board must remain firmly against the gauge fence. A warped or twisted board can introduce problems that have nothing to do with the gauge itself.
4. The blade
The blade needs to be properly aligned with the miter slot. A misaligned blade can affect both accuracy and cutting behavior. WOOD Magazine’s table-saw tuning guidance specifically emphasizes checking blade alignment with the miter slots and following proper table saw alignment techniques.
The lesson is simple: a precision miter gauge cannot compensate for a poorly aligned table saw.
How to Set Up a Miter Gauge for Table Saw Accuracy
The first setup should happen before cutting valuable project material.
Check the fit in the slot
Set the Miter Gauge. 30 seconds. Step 2 • Push your guide bar into one of the miter slots. • Move it back and forth.
You want smooth movement without rock.
• Some gauges provide a means to expand the bar into the slot to eliminate sideways wiggle, or WOOD Magazine lists simple, traditional solutions for a wiggle gauge. • Make sure you’re not so tight that you bind on the table. A sticking-sticking device certainly won’t serve as your precision guidance. Step 3.
Calibrate Your 90° .1 minutes • Make sure the 90° position is truly 90°.
• Don’t look to the gauge for your reference of zero, but rather to the blade, or other object you’re aiming for perpendicular with. • Wood Magazine recommends taking each miter gauge out and checking it against the blade – adjust any stops that aren’t accurately reporting the correct angle.
Check other commonly used angles
If your projects involve miters, verify 45 degrees as well. A gauge that is accurate at 90 degrees is not automatically accurate at every other setting.
This matters particularly for picture frames, boxes, trim components, and other assemblies where several angled cuts must meet.
Choosing the Right Miter Gauge
Most table-saw owners may not need an aftermarket gauge that is costly. The selection depends on what cuts you make. For simply cross-cutting, maybe only once in awhile at an angle, you’re likely fine with a simple gauge that would work in front of and behind your blade.
More advanced gauges would allow you greater adjustment for your angles, with fine calibration, greater stops and fences and play controls.
Don’t buy on the number of angle markings available for your model.
Fit and adjustability
A good guide bar should fit the saw’s slot with minimal unwanted movement. Some aftermarket gauges include adjustable components specifically for this purpose.
Angle calibration
Precision work benefits from a gauge that can be calibrated rather than one that assumes the factory scale is perfect.
Fence size
A larger fence gives the workpiece more support. It can also provide space for an auxiliary fence or stop system.
Locking mechanism
The angle-setting mechanism should hold securely after adjustment. A gauge that shifts during a cut defeats the purpose of using one.
Stop capability
A stop can make repeated cuts easier, but its placement must be considered carefully. On a table saw, a stop that traps a cutoff against the blade can create a dangerous situation.
Manufacturer instructions should always take precedence over generic woodworking advice because table-saw designs differ.
Why an Auxiliary Fence Can Improve the Setup
A typical miter gauge fence is relatively short.Providing a convenient auxiliary fence can be advantageous for support of wider or longer stock.
It may provide the convenient reference for a zero-clearance style situation. In WOOD Magazine an extension is mounted to the miter gauge providing more support and a means to visually locate the cut line of the blade.
The auxiliary fence needs to be securely mounted in a manner that cannot interfere with the blade or any of the other table saw components.
Extra support or a proper jig for work on small pieces is also helpful for control. In no situation should fingers be near the blade simply because the work piece is small. Special clamps or jigs might be the solution for some operations.
Miter Gauge vs. Table Saw Fence: They Are Not Interchangeable
The first very real learning experience is learning the difference between the miter gage and the rip fence. For ripping cuts the rip fence supports the material as it slides by the blade from end to end. For cross cutting operations it is the miter gage that guides the work across the blade.
One can quite easily get themselves into trouble using both guides in a crosscut by catching the cut off in between the pieces.
In my instruction book it says “Use of rip fence for cross cutting is expressly prohibited as is its use as a length stop under these conditions.” This statement warns of a rather silly thing people often do because it seems simple; they use the fence to rip multiple pieces to the same length. There is a much safer method.
Using a Miter Gauge for Crosscuts
In the case of a typical crosscut, the work is pushed against the miter gauge fence with the gauge set in the appropriate slot. The height of the blade should be set to conform to manufacturer recommendations and the details of the particular cut to be made. Hold the work tight against the gauge while slowly pushing the gauge through the saw blade.
(DeWalt’s instructions for using a miter gauge describe operating it in a nearly identical manner, placing the gauge in the selected slot and holding the work against it while also observing proper precautions about keeping the hands clear of the blade path.)
The cutting is to be performed at a controlled and steady pace, avoiding too rapid feeding of the workpiece, as that can make either cutting action or workpiece control difficult.
Making Angled Cuts With a Miter Gauge
The real usefulness of a miter gauge kicks into high gear when its set away from the 90. The 45-degree range comes in handy for some box-and-frame work. Use your gauge settings as starting points though; on precision cuts always set, then test.
In some cases even carefully set pieces can come up with wobbly-at-best joints where the mounting surface or reference block causes inconsistency.
When the stakes are high, a quick test cut works out many, many problems before finalassemblyis complete.
When a Crosscut Sled May Be Better
A miter gauge is not always the best tool A crosscut sled is another tool that fits into the miter slots of your table saw, and is also capable of giving you a greater surface area on either side of your work piece, useful for consistent square crosscuts, and some crosscut sled woodworking projects.
While a sled and a miter gauge can be used for similar tasks, a crosscut sled usually involves more workpiece support and more consistent relationships with your saw’s blade, making it especially useful for repeated precise operations, whereas the gauge provides more overall versatility when working with multiple angles. For occasional crosscutting, the gauge may be all you require. If you do frequent work where repetition is a key element, a sturdy table saw crosscut sled may be well worth your while.
Common Miter Gauge Problems and What They Usually Mean
The cut is consistently out of square
First, check the gauge setting rather than assuming the blade is responsible. Verify the gauge against the blade and recalibrate it if necessary.
The gauge rocks in the slot
Excessive clearance between the guide bar and miter slot is a likely contributor. If the gauge has adjustable bar components, follow the manufacturer’s adjustment procedure.
The gauge binds
The guide bar may be too tight, or the slot may contain debris. Clean the slot and inspect the bar rather than forcing the gauge through it.
Identical cuts are different lengths
Check whether the workpiece is consistently contacting the gauge fence and whether the stop arrangement is secure. Also inspect the material for inconsistent dimensions.
Miters do not close properly
Do not immediately blame the gauge. Check the actual angle, blade alignment, workpiece edges, and assembly method. A small error in each component can accumulate.
Safety Is Part of Precision
Precision and safety are linked at the table saw. Thesetup where the workpiece needs to be held awkwardly or where the operator needs to get near the blade is a poor precision setup. OSHA lists contact with a blade, kickback, and flying particles as typical table saw dangers and cautions that machinery should be properly guarded and table saw safety practices should be employed.
As long as the process allows, always use your manufacturer’s supplied blade guard, a riving-knife or splitter and see that your saw is properly tuned.
Eye safety is of course necessary, and you will want to wear no loose clothing, jewelry, or items that could get caught in the machinery. Above all, never get your hand into the path of a blade just because it’s more convenient for controlling a small piece or a tricky workpiece. If you have trouble controlling a piece, take the setup apart and Rethink The Idea!
Mistakes That Reduce Both Accuracy and Safety
One of the most common misconceptions is that the factory supplied rip fence scaleis going to be square. Tolerance of the manufacture process, wear, and previous adjustabilitywill impact it accuracy. Over estimating its range is the next thing I always warn people against-that all set ups do not have excessive amount of play (for whatever method you use to achieve good readings you cannot overcome enough slop).
Workingslowly also improves all you woodworking in general2 minutes measuring could help savean hour’sworth of bad stock.
Do not do all your work at thetable saw with a rip fence cut, the guidance used depends solely onthe type of cut. Only do what the manufacturersinstructions tell your table sawsuitable for.
A Practical Setup Routine for Better Results
Before an important project cut, use a simple routine:
- Inspect the saw, blade, guard, and miter gauge.
- Clean the miter slot and gauge bar.
- Check that the gauge slides smoothly without excessive lateral play.
- Verify the desired angle with a reliable reference.
- Confirm the blade is properly aligned with the miter slot.
- Test the setup on scrap material.
- Check the first finished cut before producing multiple pieces.
This routine is not complicated, but it prevents a surprisingly large number of avoidable mistakes.
The Bigger Lesson: Accuracy Comes From the Whole Setup
The best miter gauge for table saw work is not necessarily the most expensive gauge in the workshop.Even a well-designed gauge won’t overcome a misaligned saw, wobbling guide bar, improper angle adjustment or insecure work material. It is the interplay of the table, the slot, the gauge, the blade and the material that really counts. For a beginner, learning not to assume and to test, for an experienced woodworker it is the ability to maintain the setup just as precisely as the cutting tool, that counts. Such precision is seldom created by a single device and is instead built up from dozens of tiny procedures.
Conclusion
A miter gauge for table saw projects can turn a table saw into a much more versatile crosscutting tool, allowing controlled square cuts, miters, and other angled operations. But it’s no more effective than the way it’s set up and maintained-close-fitting guide bar, properly adjusted angle, secure fence, square to the blade, correctly supported piece of stock. The single most practical skill to develop is to always check the setup against scrap before you put your quality piece into use.
Check the angle, turn the crank, test on scrap and fix any minor discrepancies. When you combine safety and accuracy into one cohesive system, a miter gauge is much more than just another gizmo, it’s a quality guiding mechanism that can deliver truly repeatable and reliable results from your table saw.
FAQs
1. Can you use a miter gauge on any table saw?
Many table saws are designed with one or more standard-style miter slots, but dimensions and configurations can vary. Check your saw’s manual and confirm that the gauge is compatible before purchasing an aftermarket model.
2. Should a miter gauge be tight in the table saw slot?
It should slide smoothly while having minimal side-to-side movement. If it binds, it is too tight; if it rocks noticeably, it may have excessive clearance.
3. Is a miter gauge better than a crosscut sled?
Neither is universally better. A miter gauge offers flexible angle adjustment, while a crosscut sled can provide a larger, more stable platform for certain repetitive crosscutting tasks.
4. Can I use the table saw fence with a miter gauge?
For crosscutting, using the rip fence together with the miter gauge can create a dangerous trapped cutoff condition. Follow your saw manufacturer’s instructions and use an appropriate stop arrangement instead.
5. Why is my miter gauge not cutting square?
Possible causes include an inaccurate gauge setting, excessive play in the miter slot, blade misalignment, or inconsistent workpiece positioning. Verify each part of the setup rather than adjusting only the gauge.
6. Do I need an aftermarket miter gauge?
Not necessarily. A factory gauge can be sufficient for many tasks. An aftermarket model becomes more attractive when you need finer calibration, improved stability, better support, or more repeatable angle settings.
7. What should I use for very small workpieces?
Avoid putting your hands close to the blade to control small pieces. Depending on the operation, an appropriate jig, auxiliary support, or clamping arrangement can provide better control.
